PDF DIAGRAMS

Download & print all the diagrams you need

HERE

In This Video

1. Overview of the Captain's Chair
2. What is a Windsor Chair?
3. A brief look at the chair's joinery and design
4. Look ahead to the steps and processes to come

Links

Check out Robin's beautiful work over at this website

In This Video

1. How & where to buy your plank
2. What to look for
3. Useful tips & things to avoid
4. A look ahead - what we will use the plank for

In This Video

1. Overview of the tapered joints in the chair
2. How to use a reamer
3. Making a test tapered mortise

NOTE:

- This test mortise can be used later, in Step 8, to make your mortise block

In This Video

1. Overview of tapered tenon cutters and how to use them
2. How to adjust & set your tenon cutter to match your reamer
3. How to create an accurate tapered tenon using the pole lathe and tenon cutter
4. How to use this tenon to test that your tenon cutter is perfectly set

NOTE:

- With the tenon cutter set, this process can now be repeated for all tapered tenons on the chair

- If you can't access a tenon cutter that perfectly matches your reamer, see Step 8 to make a Mortise Block instead

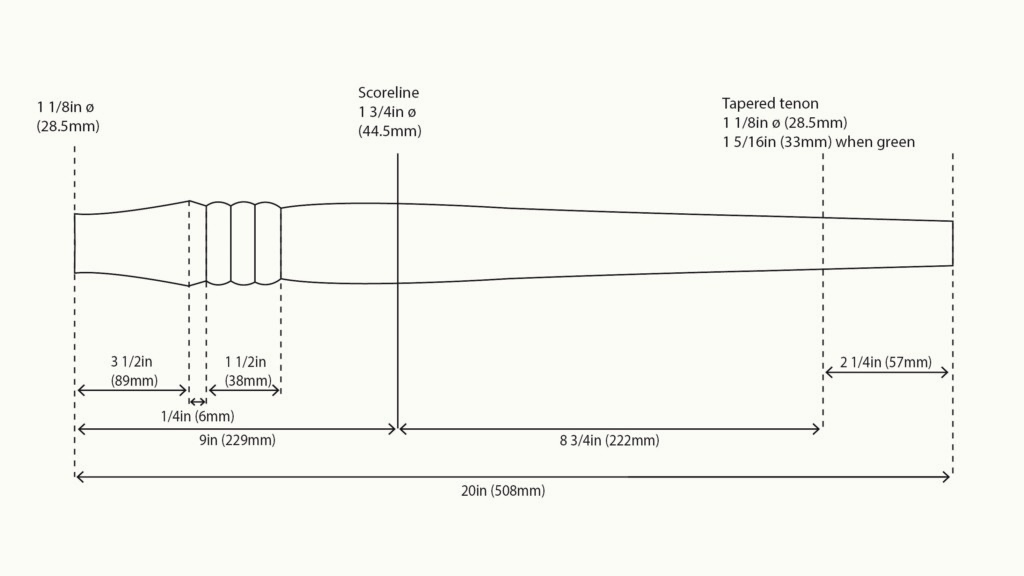

PDF DIAGRAMS

DOWNLOAD TURNED COMPONENTS

In This Video

1. How to layout a story stick
2. Process and tips for turning your legs
3. Tips on making a good bead

NOTE:

- Check out our ‘Making a Windsor Chair Leg’  film in the Guest Instructor page to see how to prep and turn a chair leg from green wood

- Check out the ‘Tapered Tenon Test’ film in this series for a reminder of how to create the tenon on your legs!

If using green wood - all components should be turned at least 10% over-size before being set aside to dry

Final shaping & sizing is done once components are fully dried

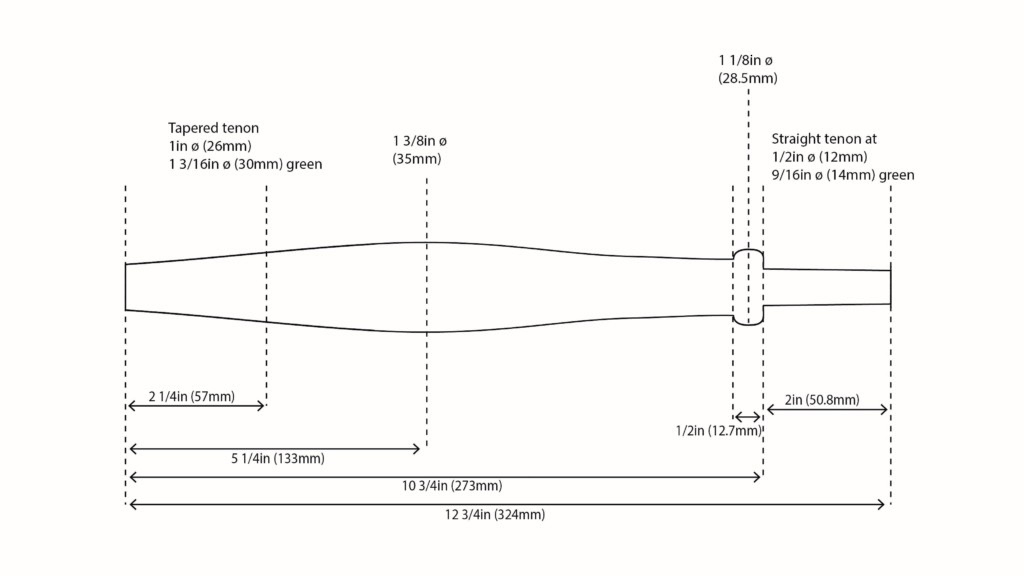

PDF DIAGRAMS

DOWNLOAD TURNED COMPONENTS

In This Video

1. Process and tips for turning your Crest & Arm Posts

NOTE:

- Refer to the Tapered Tenon Test film for the sequence on turning a tenon

- The jig used to check tenon size is a Mortise Block - see Step 8 to learn how to make one!

Repeat these techniques to make all the remaining turned components.

Refer to the PDF Diagrams for measurements

If using green wood - turned components should be set aside to dry fully, before final shaping and sizing

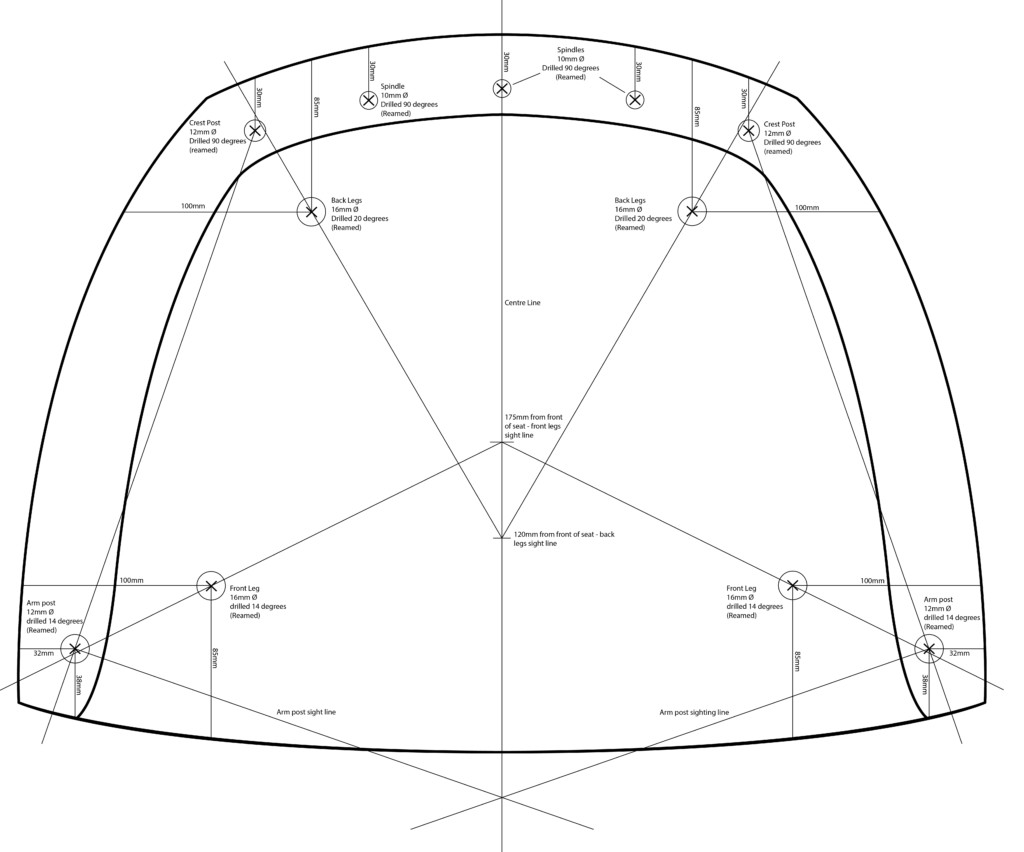

SEAT PLAN

(Print at A1)

DOWNLOAD TEMPLATE

In This Video

1. Using the template & laying out the seat
2. Measurements & angles for holes
3. Using sliding bevels & squares to drill accurately
4. Top Tips on different drill bits

NOTE:

- It's worth re-watching the Sourcing The Plank film before starting this stage.

- Refer to Sourcing The Plank film & the Chopping Board section of the book for instructions on cupping, and how to flatten your board.

- Refer to the PDF diagram on this page for all measurements and hole diameters.

- Refer to the Carving the Seat film, later in this series, to see how to cut out and drill the arms & crest.

In This Video

1. Using the test mortise created in Step 3 to create a mortise block

NOTE:

- A Mortise block is a great alternative to a tenon cutter, for making your tapered tenons

- You must make a different mortise block for each of the tapered tenons on your chair

- Refer to the PDF Diagrams for the appropriate sizes of each of the tapered tenons

In This Video

1. Using a mortise block to size a tapered tenon on a dry turned component
2. This creates the final size and shape of your tapered tenons
3. This step should be done after components have been turned green and then fully dried

NOTE:

- A mortise block can be used if you don't have a tenon cutter that matches your reamer

- You can test your sized tenon in a test mortise to ensure a perfect fit

In This Video

This video covers reaming the tapered mortises for your legs

1. Re-cap of tapered joints and methods for creating them
2. How to mark out sight lines for your legs
3. In depth demo using reamer to create tapered mortises
4. How to use sliding bevels, squares and sight-lines to ream accurately, at the correct angles
5. How to use the ‘scoreline’ on your turned legs to ream to the correct depth, and have 4 perfectly matching legs

NOTE:

- Reaming to fit should be done once your components are fully dry, with finished tapered tenons

In This Video

This video covers reaming to fit all the turned components for the top of the chair

1. Recap of top deck turned components and their positions
2. Explanation of the angles and splay of the arm posts
3. How to ream to fit accurately for the spindles, arm posts and crest posts

NOTE:

- Reaming to fit should be done once your components are fully dry, with finished tapered tenons

- Ream the top deck after reaming the leg holes, whilst your plank is still flat. With this done you can begin carving your seat!

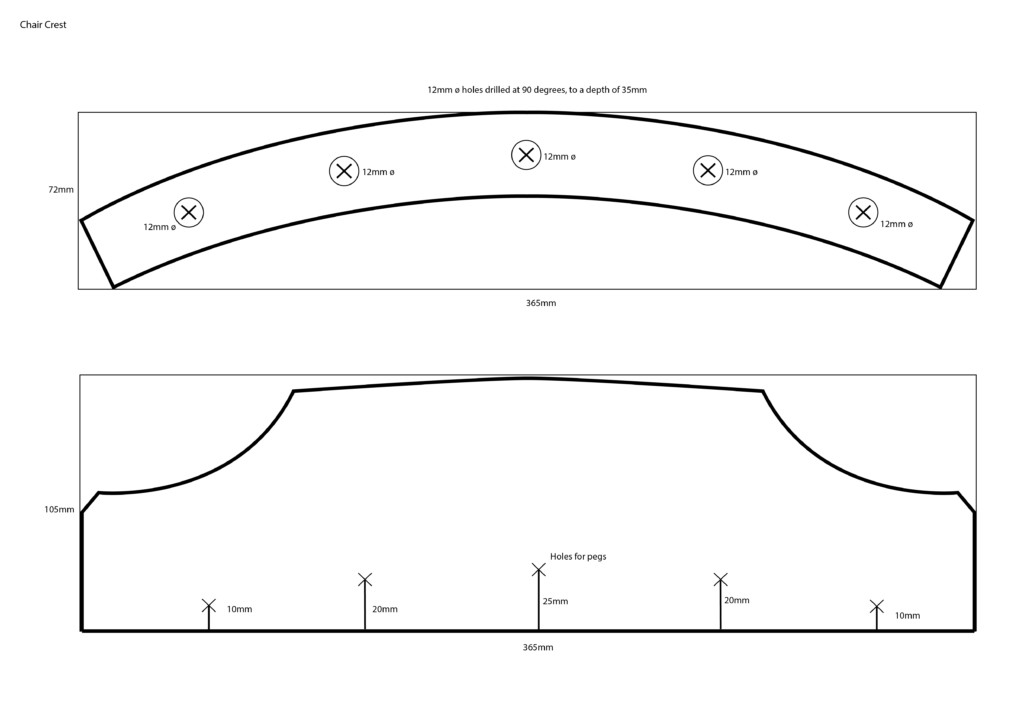

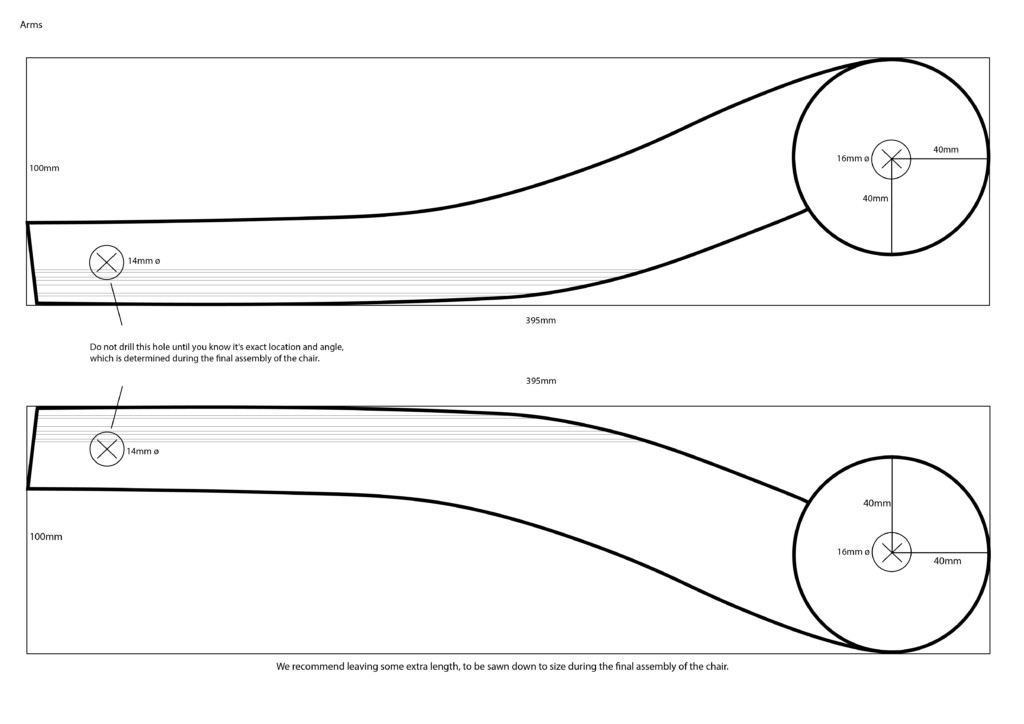

CREST & ARM TEMPLATES

(Print 'actual size' at A3)

DOWNLOAD TEMPLATES

In This Video

This video covers carving the seat, and drilling the crest & arms

1. How to trace and mark out
2. Explanation of grain direction
3. Shaping the seat step-by-step
4. Demos of various potential tools incl. gouge, adze, scorp, draw knife & travisher
5. Bevelling the seat
6. Cutting out and drilling the crest & arms

NOTE:

- The seat can be smoothed later if you wish

- Check out the 'Shaping The Arms' & 'Shaping The Crest' vids coming next week, to see how to finish those!

In This Video

This video covers shaping the arms, ready for fitting during final assembly of the chair.

1. Drilling the arm rest
2. Rough shaping with an axe
3. Finishing with spoke shave, draw knife & straight knife

NOTE:

- Refer to the Carving the Seat film, for cutting out the arms.

In This Video

This video covers shaping the crest, ready for fitting during final assembly of the chair.

1. Rough shaping with an axe
2. Finishing with the draw knife

NOTE:

- Refer to the Carving the Seat film, for cutting out and drilling the crest.

In This Video

This video covers drilling mortises and taking measurements for the side stretchers.

This is the first step in assembling the undercarriage of the chair!

1. Drilling holes in the legs, ready for the side stretchers
2. Taking measurements for the appropriate length of each side stretcher.

NOTE:

- Before starting this process, you should have all 4 legs reamed to fit, and marked with their correct orientation.

- Mortises for the side stretchers are drilled to a depth of 1"

- Once this is done, the side stretchers can be turned to a final shape and length.

In This Video

This video covers turning your side stretchers to their final shape, and length, ready for fitting.

1. Marking the centre point, and applying correct length measurements.
2. Turning to the desired finished shape
3. Sawing to length

NOTE:

- This same process can be applied to the centre stretcher, once length measurements have been taken for that

In This Video

This video covers dry fitting the side stretchers before drilling mortises and taking length measurements for the centre stretcher.

1. Dry fitting the stretchers
2. Techniques for sizing down tenons, and getting a perfect 'push fit'
3. Drilling mortises for the centre stretcher
4. Taking correct length measurements for the centre stretcher

NOTE:

- You can now turn the centre stretcher to the final shape and length, using the same process as used for the side stretchers.

- With the centre stretcher finished, repeat the process for dry fitting it to the side stretchers.

In This Video

After dry fitting and assembling all the parts, it’s time to glue & wedge the undercarriage!

1. Making wedges
2. Marking legs for wedges
3. Glueing and assembling the undercarriage
4. Leveling the chair
5. Dressing the tops of the wedges

NOTE

- Before starting the glueing and final assembly, you should dry fit all of your stretchers & legs together. Refer to the Measuring For Centre Stretcher film to see how to do this.

- The Centre & Side stretchers should be fitted together first, before then fitting to the legs and finally, the seat.

In This Video

This video covers measuring and dry fitting the top carriage, and making pegs, all ready for the final assembly!

1. Measuring & drilling the crest hole in the arms
2. Shaping the arms to fit
3. Sawing the crest post & spindle tenons
4. Dry fitting the spindles, arms & crest
5. Making pegs for the spindles & crest

In This Video

This video covers the final steps in completing your chair! Glueing, fitting, wedging and pegging the top carriage components.

1. Glueing & wedging arm posts
2. Gleuing & pegging spindles and back posts
3. Glueing & wedging the arms
4. Glueing & pegging the crest
